Why choose us

1.JINCHENG have more than 20 years history for R&D and production of serious filtration equipments,we are not only have strong technical support but also own advanced processing equipments,which enable us to product the large and medium-sized machine;

2.All raw materials come from well-known manufacturers to ensure the stability and service life of the equipment in the later stage.The quotation is very competitive in the market

3.JINCHENG Filter Press are deigned to generate easily managed dry product or waste material, the filter press also provides tha ability to optimize the recovery of clean,resuable water.

4.JINCHENG Filter Press can equip with different funcitons to meet customer rquirements, for example, quick-open system, shaking device,self-washing system and so on. we will design and help to build a whole production line;

5.JINCHENG Customer Service Team offers a wide range of fast spare parts sourcing as well as routine and emergency maintenance service support. All 6.JINCHENG Filter Presses can have customer remote control access capability for efficient monitoring and troubleshooting

Working Principle

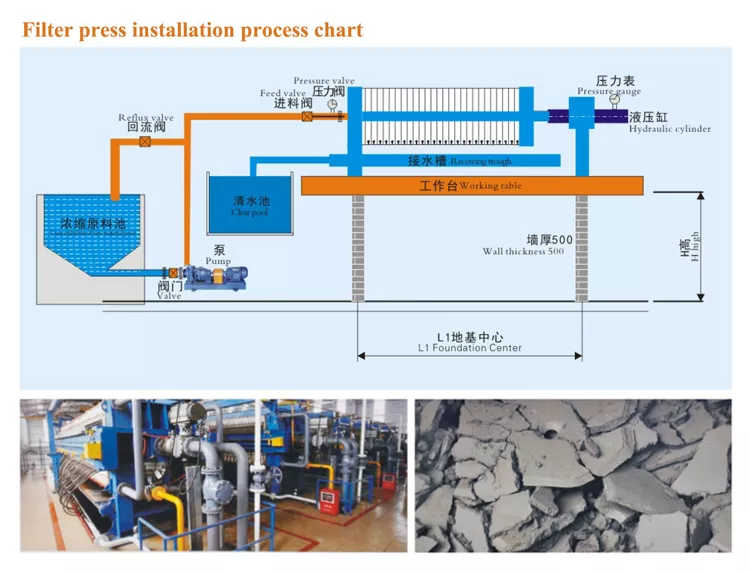

A Filter Press is composed of a support structure holding a series of filter plates lined with filter cloths. Hydraulic pressure is used to hold the recessed plates tightly together, creating a seal around their perimeters and void spaces between the plates. A high-pressure slurry pump forces slurry into the empty chamber spaces between the plates for dewatering. The slurry solids are captured between the plates, while the clean filtrate water passes through the filter cloth mesh and exits through ports in the filter plates. When the chamber spaces are full of dewatered slurry solids, the slurry feed pump is automatically stopped. The hydraulic pressure holding the plates together is released so the plates can be separated individually, allowing the dewatered solid material cakes to fall by gravity out of the press.

Many people think the filter plates are squeezed together to expel water, but the press never moves during the time of dewatering. The only movements involved occur when the plates separate to expel the dry cakes or close to begin a new process cycle. Plates simply connect to form a seal under hydraulic pressure while the feed pump supplies the necessary pressure to dewater the fine solids.

Filter Presses are designed for simple and limited movement. This design leads to high-levels of automation and reliability. Compared to competing dewatering technologies, higher levels of water removal can be achieved with the Filter Press because the material being dewatered is captured between the recessed plates under the highest possible pump pressures. The Filter Press is also designed for the specific application by selecting the cycle times, cake thickness, feed pressures and plate styles to achieve optimum dewatering efficiencies.


Specification

Model

Filtering
 area

Plate
 size(mm)

Chamber
volumn(L)

Cake
thickness
(mm)

Plate
number

XMY/1000-30U

80

1000*1000

1200

30

46

90

1360

52

100

1510

58

120

1815

70

XMY/1090-30U

100

1090*1090

1500

49

110

1650

54

120

1800

59

130

1950

64

140

2100

69

XMY/1250-30U

120

1250*1250

1830

30

44

140

2150

52

150

2310

56

160

2430

59

180

2760

67

200

3040

74

250

3810

93

XMY/1500-30U

250

1500*1500

3760

30

62

300

4480

74

350

5250

87

400

5960

99

450

6740

112

500

7510

125
