Why choose us Working Principle Specification
Why choose us

JINCHENG have more than 20 years history for R&D and production of serious filtration equipments，we are not only have strong technical support but also own advanced processing equipments,which enable us to product the large and medium-sized machine;

All raw materials come from well-known manufacturers to ensure the stability and service life of the equipment in the later stage.The quotation is very competitive in the market

JINCHENG Filter Press are deigned to generate easily managed dry product or waste material, the filter press also provides tha ability to optimize the recovery of clean,resuable water.

JINCHENG Filter Press can equip with different funcitons to meet customer rquirements, for example, quick-open system, shaking device,self-washing system and so on. we will design and help to build a whole production line;

JINCHENG Customer Service Team offers a wide range of fast spare parts sourcing as well as routine and emergency maintenance service support. All JINCHENG Filter Presses can have customer remote control access capability for efficient monitoring and troubleshooting;

Working Principle

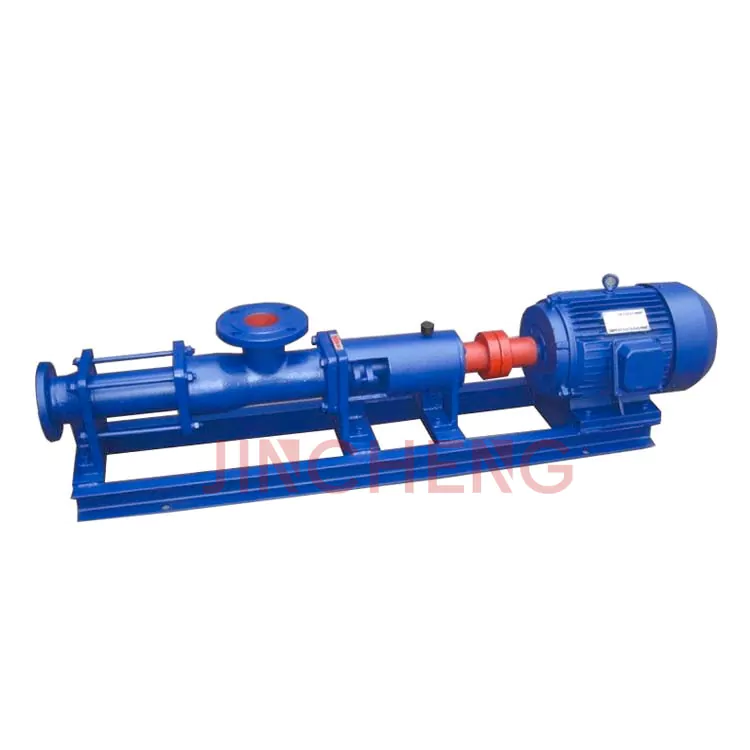

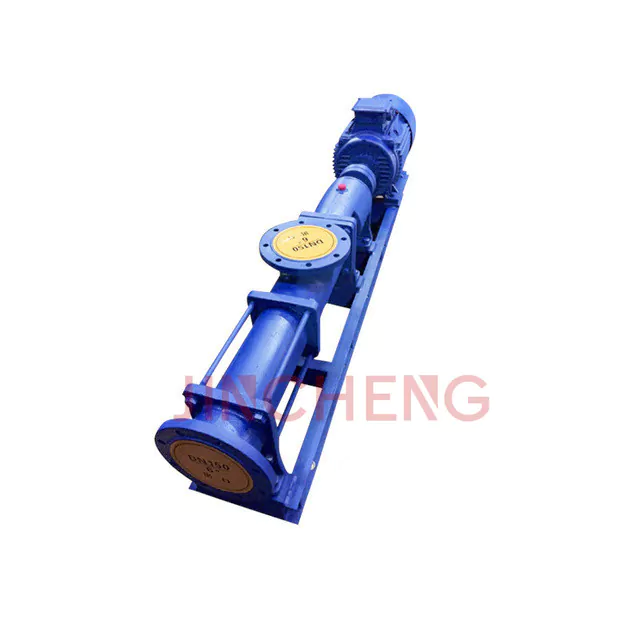

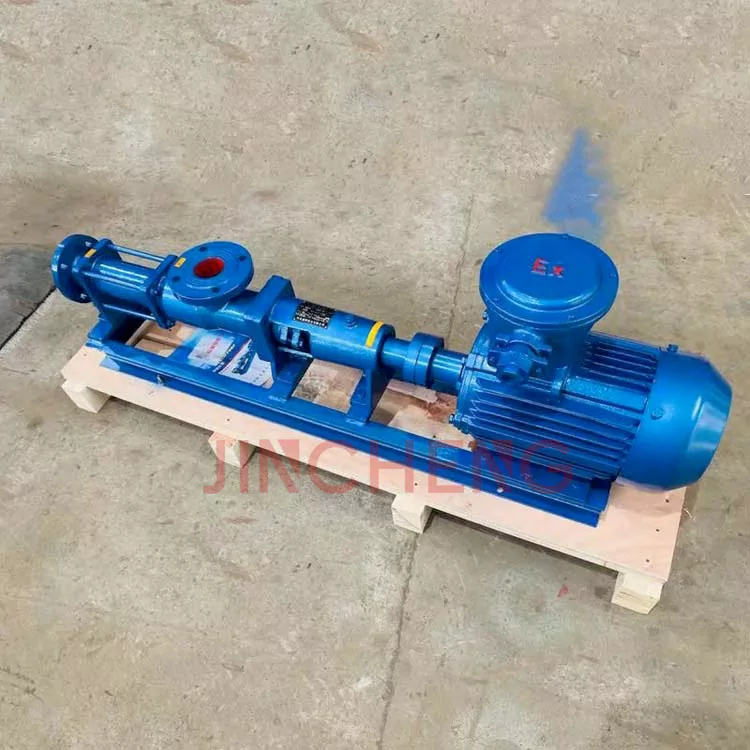

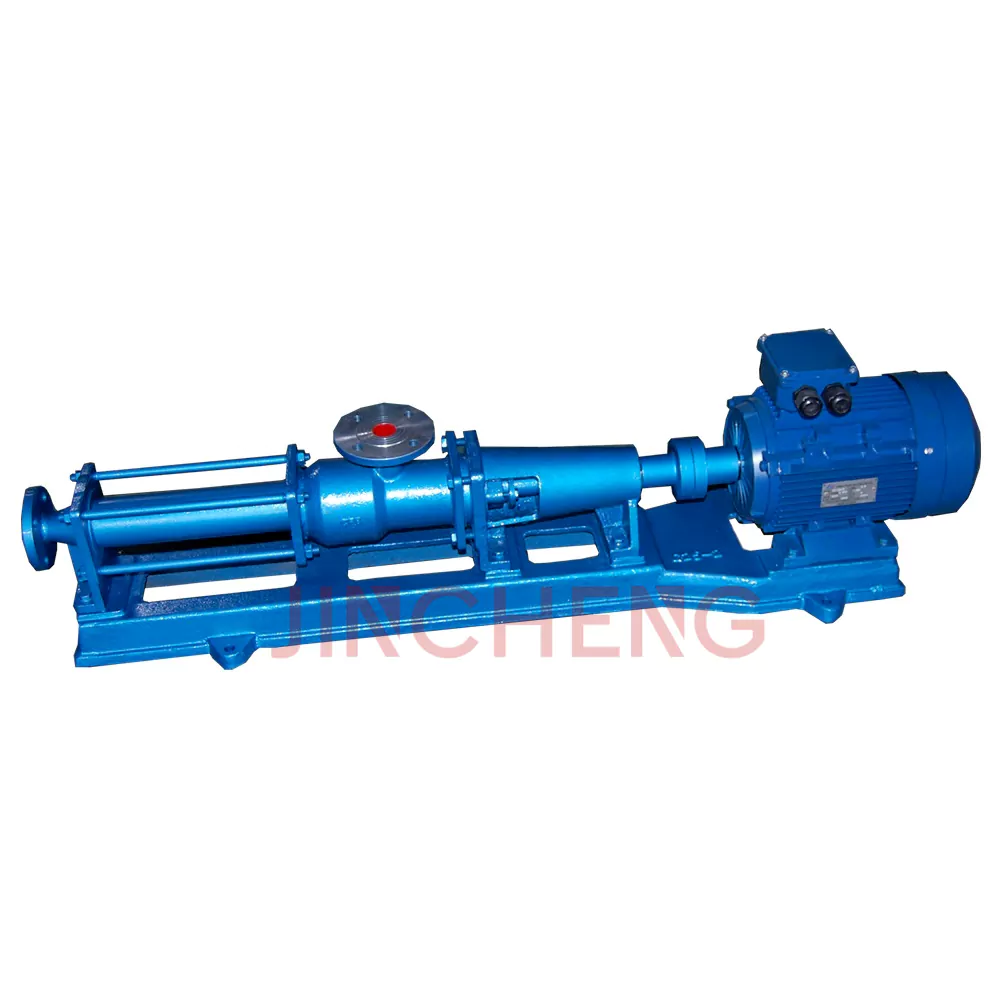

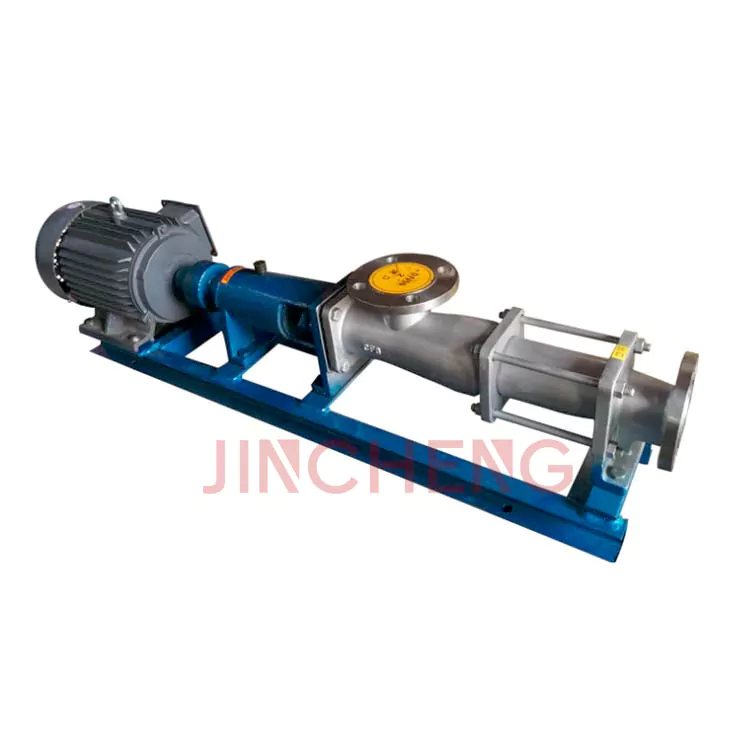

G single screw pump belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.

It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and thestator cavity and its meshing singlehead screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.
Specification

Model

Speed

R/min

Capacity

m3/h

Pressure

MPa

Power

KW

G20-1

960

0.8

0.6

0.75

G20-2

960

0.8

1.2

1.5

G25-1

960

2

0.6

1.5

G25-2

960

2

1.2

2.2

G30-1

960

5

0.6

2.2

G30-2

960

5

1.2

3

G35-1

960

8

0.6

3

G35-2

960

8

1.2

4

G40-1

960

12

0.6

4

G40-2

960

12

1.2

5.5

G50-1

960

20

0.6

5.5

G50-2

960

20

1.2

7.5

G60-1

960

30

0.6

11

G60-2

960

30

1.2

15

G70-1

720

45

0.6

11

G70-2

720

45

1.2

15

G85-1

720

55

0.6

15

G85-2

720

55

1.2

18.5
