Why choose us

1.JINCHENG have more than 20 years history for R&D and production of seriousfiltration equipments,we are not only have strong technical support but also own advanced processing equipments,which enable us to product the large and medium-sized machine;

2.All raw materials come from well-known manufacturers to ensure the stability and service life of the equipment in the later stage.

3.JINCHENG Filter Press are deigned to generate easily managed dry product or waste material, the filter press also provides tha ability to optimize the recovery of clean,resuable water.

4.JINCHENG Filter Press can equip with different funcitons to meet customer rquirements, for example, quick-open system, shaking device,self-washing system and so on. we will design and help to build a whole production line;

5.JINCHENG Customer Service Team offers a wide range of fast spare parts sourcing as well as routine and emergency maintenance service support. All JINCHENG Filter Presses can have customer remote control access capability for efficient monitoring and troubleshooting;


Working Principle

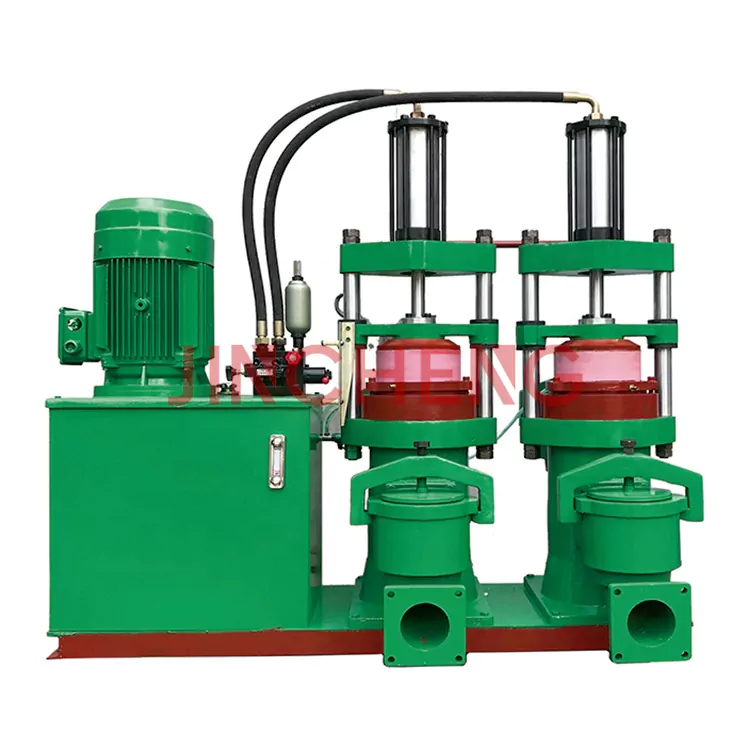

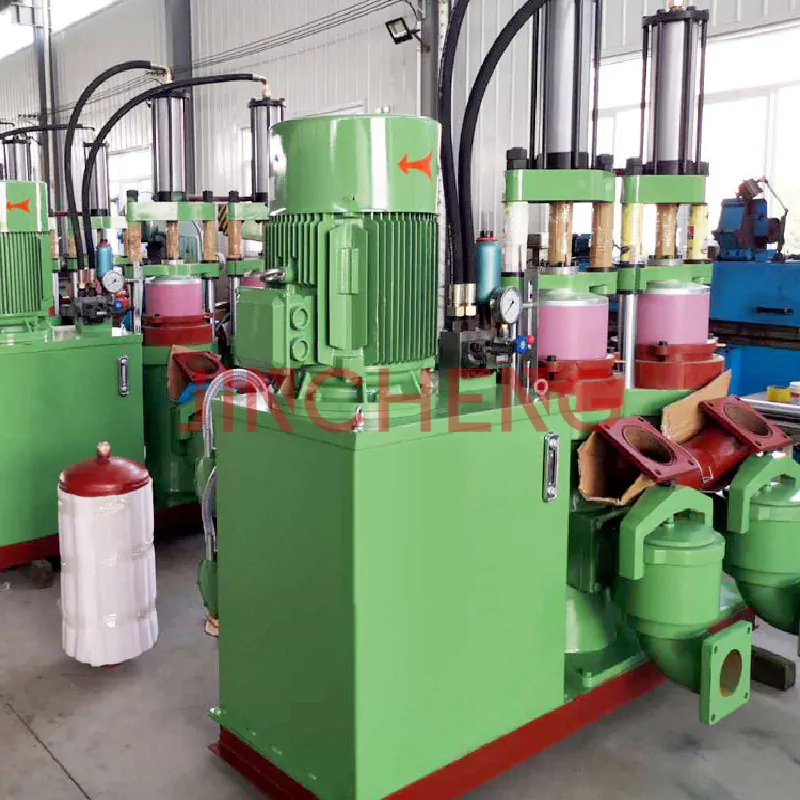

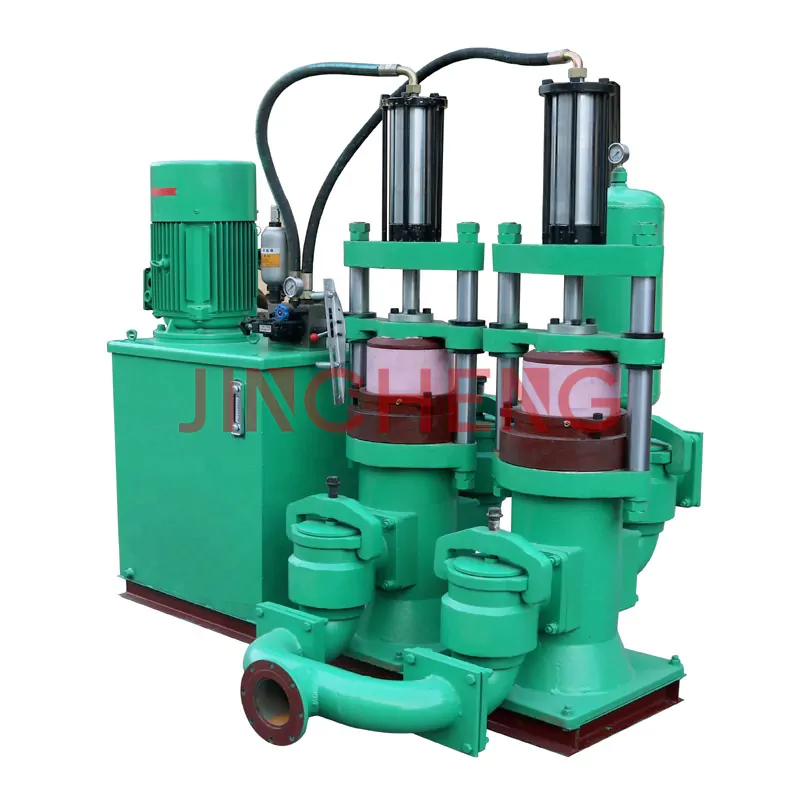

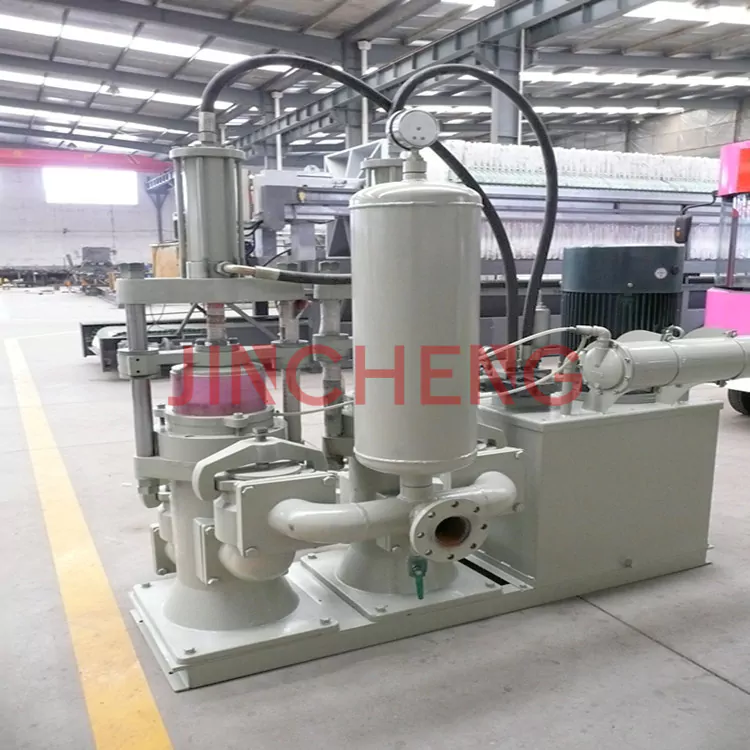

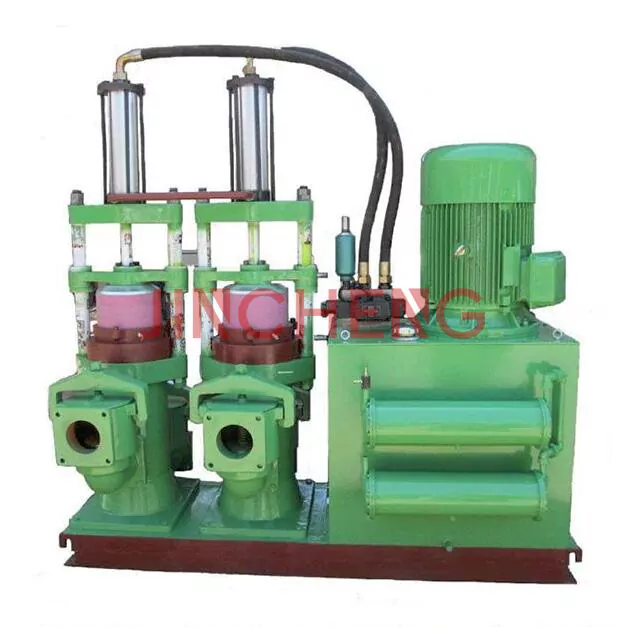

YB series ceramic plunger pump is a hydraulic displacement parallel pump double acting volume type pump. Using α-type alumina as the plunger, it has extremely high wear resistance and corrosion resistance. The pump has stable and reliable operation, high output pressure and accurate measurement, low pressure fluctuation, low noise, acid and alkali resistance, easy operation and maintenance, and use Long life and other characteristics, used with filter press is the most ideal product for various types of solid-liquid separation.
Specification

Model

Rated Flow

M3/h

Pressure Range

MPa

Motor Power

KW

Weight

Kg

YB85

3

0-2.5

4

420

YB120

7.1

0-2.5

11

850

YB140

10

0-2.5

15

900

YB200

19

0-2.5

18.5

1200

YB250

30

0-2.5

22

1400

YB300

36

0-2.5

30

1600

Get in touch

Welcome to visit our website. If you need an olive oil production line, please write down any questions, we will reply as soon as possible.

  • *
  • *
