Henan Jincheng is professional manufacturer in all kinds of centrifugal pumps, mainly slurry pump, water pump, chemical pump etc, and kinds of high quantity high head pumps are all available. The pumps are widely used in Mining, Metallurgy,Pro-environment, Construction, Papermaking, Aluminum, Power Plant, Irrigation and other industries, that is very suitalbe for filter press as feeding pump.

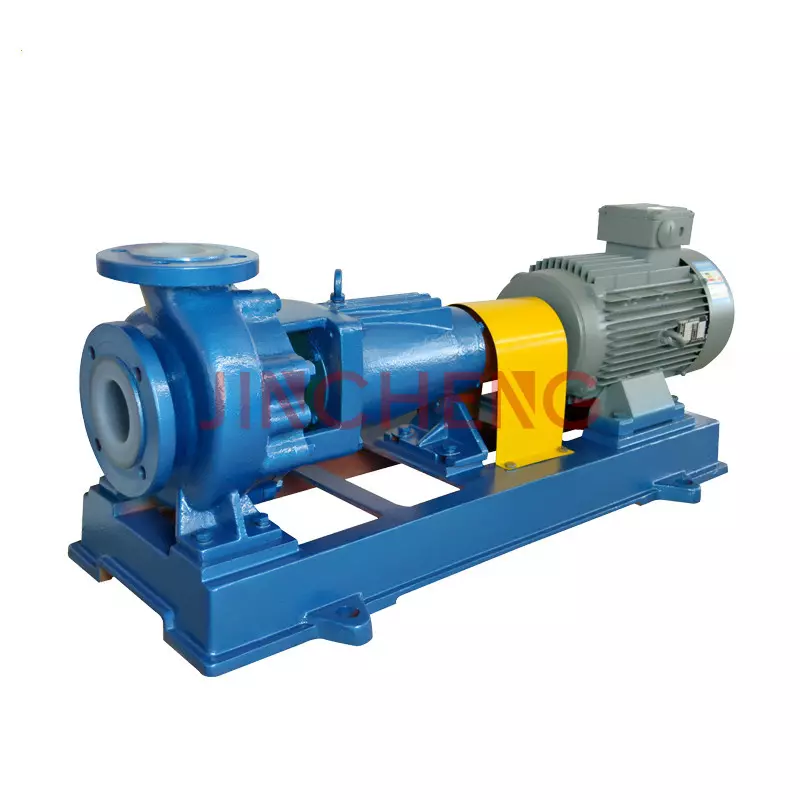

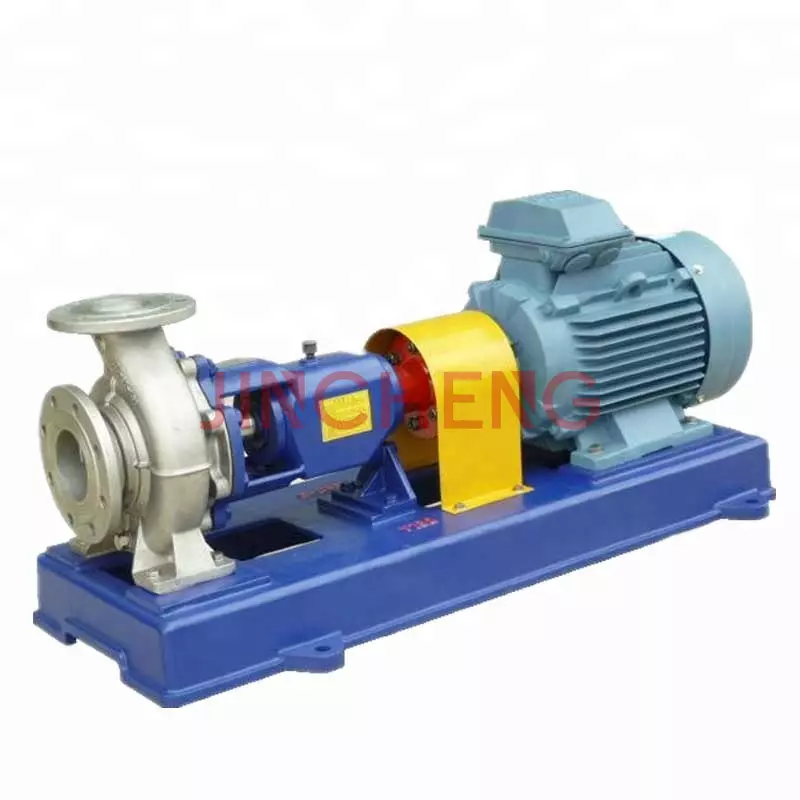

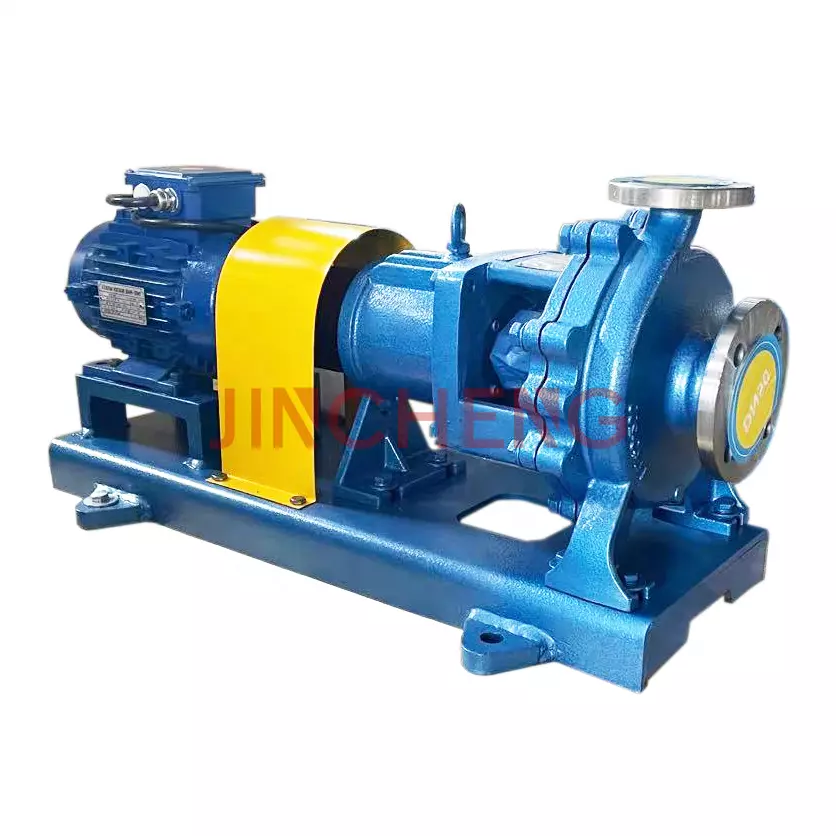

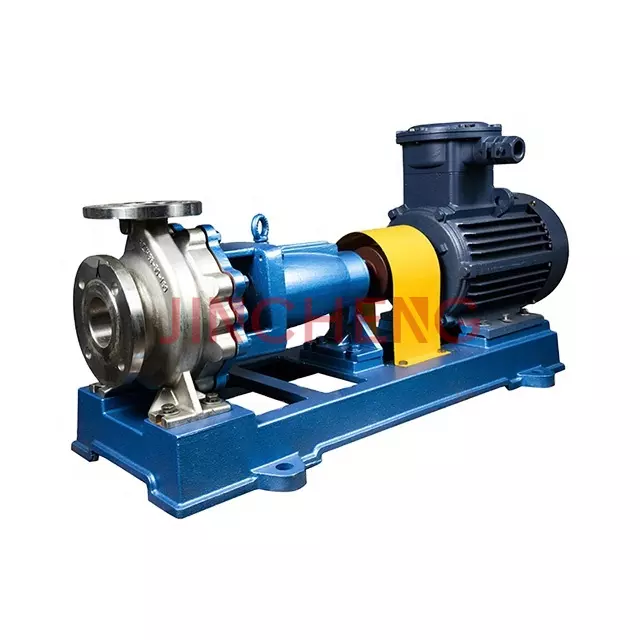

IH Series chemical centrifugal pump is single stage suction cantilever type centrifugal pumps. It used to deliver corrosive liquid which not containing solid particles and similar to water in viscosity. It featured by wide range of performance,high efficiency, superior standardization, easy maintenance etc.
Model | Capacity(m3/h) | Head (m) | Motor power(kw) | Speed(r/min) |
IH50-32-125 | 7.5 | 23 | 2.2 | 2900 |
IH50-32-160 | 7.5 | 34.5 | 3 | 2900 |
IH50-32-200 | 7.5 | 51.8 | 5.5 | 2900 |
IH50-32-250 | 7.5 | 82 | 11 | 2900 |
IH65-50-125 | 15 | 21.3 | 3 | 2900 |
IH65-50-160 | 15 | 34.2 | 5.5 | 2900 |
IH65-40-200 | 15 | 53.2 | 11 | 2900 |
IH65-40-250 | 15 | 81.2 | 15 | 2900 |
IH65-40-315 | 15 | 126.8 | 30 | 2900 |
IH80-65-125 | 30 | 23.2 | 5.5 | 2900 |
IH80-65-160 | 30 | 36 | 11 | 2900 |
IH80-50-200 | 30 | 55.2 | 15 | 2900 |
IH80-50-250 | 30 | 84 | 30 | 2900 |
IH80-50-315 | 30 | 128 | 48 | 2900 |
